Extracting data from pension statements
Public retirement systems and corporate plan administrators send retirees a pension statement with every payment, each in the system's own layout. Mortgage lenders may request the latest statement when applicants use pension income to qualify, as a portal download or a scan of the mailed advice.
Underwriting needs the gross monthly annuity, the tax withholding, the other deductions and the net payment. The loan origination system counts the gross annuity as qualifying income, once documents show it continuing for three more years.
What makes pension statements hard
Current beside year to date
Each amount prints for the current period and again as a year-to-date total, so every figure has a twin in the next column.
Deductions in several tables
Taxes, before-tax deductions and after-tax deductions each sit in their own small table, and a summary band totals them again.
Each system's own layout
State systems, municipal plans and corporate administrators each design their own payment advice, with different labels for the same amounts.
Parse, extract, verify
Parse
Parse turns the document into reading-order Markdown and a hierarchy of blocks (text, tables, figures), and grounds each block to its exact location on the page.
Extract
You define the fields in a JSON schema, and Extract returns their values in a consistent, structured format, each linked back to where it appears in the Markdown.
Verify
Each value links back to where it appears, down to the character range in the Markdown, and the page and bounding box in the source document, so every result can be verified.
One pension statement, end to end

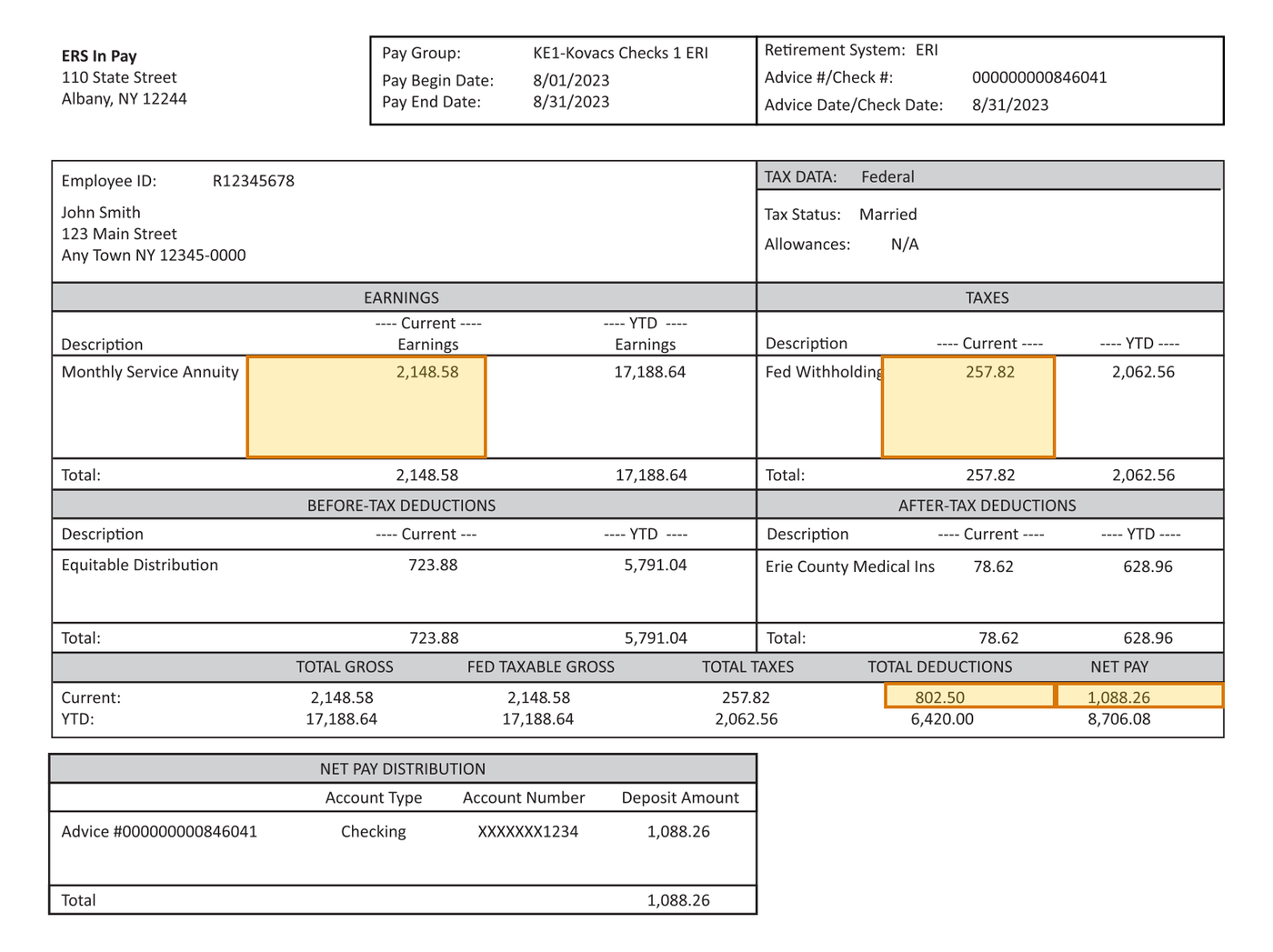

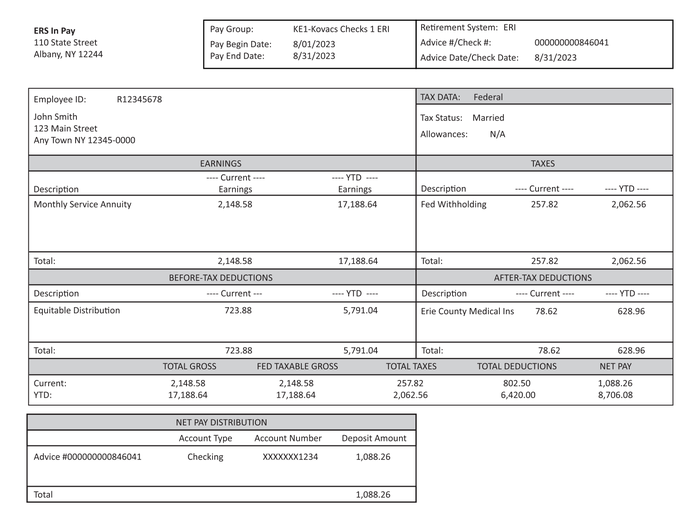

About this document: The specimen pension pay stub that the New York State and Local Retirement System shows its retirees in a tutorial on reading their payment advice. One landscape page with no text layer: a header, earnings and tax tables, deduction tables, a summary band and the net pay distribution. Page 1 is featured. Every personal value is a placeholder.
Processing objective: The objective is to follow one monthly payment from gross to net. The service annuity is the gross amount, withholding and other deductions come off it, and what remains is the net pay deposited. Each figure grounds to its own cell.
Demonstration fields: Monthly service annuity, Federal withholding, Total deductions, Net pay
The document
1 page
Page 1shown below
Where each value came from

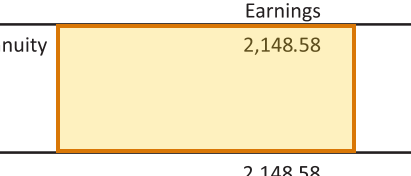

earnings[0].current
{
"value": 2148.58,
"page": 1,
"range": {
"end": 808,
"start": 800
},
"box": {
"xmin": 0.19324,
"ymin": 0.37344,
"xmax": 0.38231,
"ymax": 0.48169
}

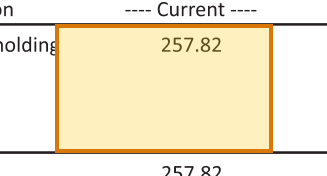

}taxes[0].current
{
"value": 257.82,
"page": 1,
"range": {
"end": 877,
"start": 871
},
"box": {
"xmin": 0.69224,
"ymin": 0.37342,
"xmax": 0.82902,
"ymax": 0.48161
}
}summary.total_deductions_current
{
"value": 802.5,
"page": 1,
"range": {
"end": 1807,
"start": 1801
},
"box": {
"xmin": 0.69487,
"ymin": 0.71663,
"xmax": 0.82938,
"ymax": 0.74401
}
}summary.net_pay_current
{
"value": 1088.26,
"page": 1,
"range": {
"end": 1824,
"start": 1816
},
"box": {
"xmin": 0.82934,
"ymin": 0.71663,
"xmax": 0.96184,
"ymax": 0.74399
}
}How to try it yourself
Everything on this page is reproducible. The sample, its schema, and the Parse and Extract API outputs are published. You can repeat the same two calls from whichever surface you already build on.
- Claude Skilldescribe the job; the agent writes it
- CLIno code at all
- MCPexpose ADE docs as an agent tool
- REST APIany language
- Pythonlandingai-ade
- TypeScriptlandingai-ade
